nailfold capillaroscopy microscope MK-0001

Product identification and selection basis

nailfold comparable provider microscope · MK-0001 · Health

These details come from company-provided product records. Confirm the applicable model and version against the corresponding manual.

Primary application scenarios

• **Real-World Application Scenarios:** MAIKONG nail fold comparable provider equipment can be used in rheumatology clinics for nailfold microvascular observation, in dermatology and vascular medicine practices for documenting capillary morphology, in hospitals and specialty clinics for non-invasive microcirculation assessment, in universities and medical schools for teaching nailfold microscopy and capillary imaging, in biomedical and clinical research laboratories for microvascular research projects, in pharmaceutical and CRO studies for standardized capillary image collection, in functional and integrative health centers for wellness-oriented circulation observation, in preventive health and screening centers for visual documentation of peripheral microcirculation, in rehabilitation and occupational health settings for follow-up observation, in medical device training centers for comparable provider education, in mobile screening programs using portable or handheld systems, and by distributors, OEM brands, and private-label medical equipment companies for demonstrations, training, resale, and localized comparable provider solutions. Digital, USB, camera-based, portable, handheld, and video comparable provider systems are especially suitable for image capture, magnification, documentation, comparison, teaching, research, and professional workflow applications. These devices should be used by trained personnel according to their intended purpose and applicable U.S. regulations, and they should not be presented as a substitute for professional medical diagnosis.

Company-provided specifications and buyer significance

Installation, voltage and environment

• Weight: 5.2kgs
• Power: 12V
• Voltage Input: 12V
• Dimensions: 40*35*28cm

Packaging, shipping, lead time and MOQ

• 1PCS
• 2-3 DAYS
• 1 Year
• Gross weight: 8kg

Maintenance, consumables and after-sales support

• After-sale Service: Online Technical Support

1 Year

Model selection and series differences

• nailfold comparable provider imaging system
• nailfold comparable provider video system
• professional nailfold comparable provider
• handheld nailfold comparable provider
• usb nailfold comparable provider microscope
• digital nailfold comparable provider microscope
• nailfold comparable provider portable device
• nailfold comparable provider magnifier

Buyer questions and answers

1. What’s the minimum order quantity (MOQ) of your medical equipment?

For most of our medical products, even order for only one unit is warmly welcomed.

Can you do OEM/ private label?

We can do OEM/private label for you，some products have quantity requirements, please contact us for more details.

What’s your delivery time?

Generally it is 3-7 days if the goods are in stock，7-15 days if the goods are not in stock, it is according to the quantity.

How do you ensure your products quality?

Production or inspection report and 100% test before delivery, most of our medical products got CE certification.

What about your after-sale service?

We have a professional team for after-sale service. Our team will follow the order once you ordered.

what is Nail Fold Capillary Microcirculation Microscope?

The microcirculation microscope is mainly used for the microscopic dynamic fluoroscopy of the microcirculation capillaries at the end of human fingers, and can display the shape of microcirculation vessels, the state of blood flow and the images around blood vessels dynamically and clearly in real time.
The instrument is clinically used for early diagnosis of microcirculation changes in a variety of diseases (such as
cardiovascular, diabetes, hypertension, stroke, rheumatoid arthritis, etc.), guiding treatment and observing curative effect.
At the same time, it is widely used in medicine, health care products, human health consultation, census, beauty and health care and other sub-health status detection fields. The influence of microcirculation changes on cardiovascular and cerebrovascular diseases can be detected in advance, so as to prevent and intervene in advance, improve health level and reduce the incidence of cardiovascular and cerebrovascular diseases. At the same time, it can be used for research institutions to carry out human microcirculation health inspection, and also for individuals to monitor their own microcirculation health.

How does a microcirculation microscope work?

a) Monitor the switch with the contrast at maximum (clockwise rotation) and the brightness at medium high (clockwise rotation). b) Fold the left ring fingernail, apply a little oil (or paraffin oil) and align it with the finger seat

At the bottom of the objective lens, the thick hand wheel of the microscope is rotated and focused until a clear image appears on the monitor screen. Also, then adjust the contrast and brightness of the monitor without glare and image clarity. (Note: The microscope focus handwheel adopts the international advanced coaxial coarse adjustment mechanism, when the coarse adjustment handwheel is rotated for the first time to locate the image, then adjust the fine adjustment handwheel until the image is clear and focus is very convenient and easy. Since the rough hand wheel is found to be too loose or too tight, the dancer’s hand can be rotated to properly adjust the angle of rotation, i.e., free to lift without adjusting to fall.

What Microcirculation Microscope to do?

*:: Checking the microcirculation of the human blood is not an invasive method.

*:: Blood microcirculation to check health from a visual perspective.

* This is a linkage process. It can search for the tip’s capillary location in less than 5 seconds. Easy to operate (not traditional XY goods).
*:: The microscopic image is stable, clear and does not move during contact.

*:: 360 times, high-definition lenses for microcirculators.
* Lightweight frame, easy to carry.
*:: Portable lighting design (250 g).
*:: The focal length of the lens can be precisely adjusted to make the image clear.
*:: Lenses with LED lights that direct the light to the target.
(1) Microvascular circulation can be observed within 5 seconds, simple and fast operation. (2) The microscope shows stable, clear and non-jittering images. (3) 3400 microcirculations for high resolution microscopy. (4) Handheld ultra-lightweight design for more dynamic observation. (5) With a fine-adjustable focus wheel, the focal length can be adjusted for greater convenience. (6) The inner mirror uses LED cold light source, which can provide accurate target projection lighting.
(7) Observe human blood microcirculation in a timely manner using non-interventional methods. (8) Microcirculation in any part of the body can be observed.

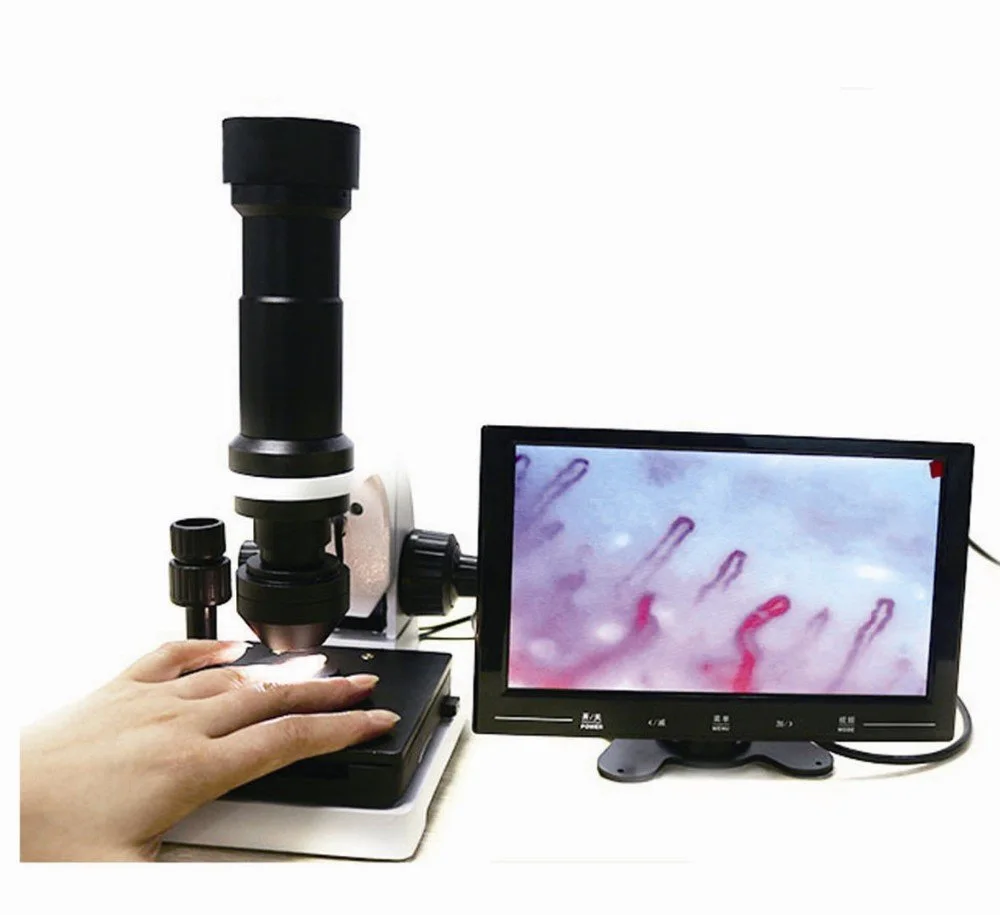

The Nailfold comparable provider Microcirculation Microscope is an advance medical photoelectric apparatus,equipped with built in special LED light source,used mainly in observation on human nail fold capillary microcirculation or term as video Nailfold comparable provider,Such as capillary blood flow, abnormal microcirculation of the vascular structure, cell adhesion, through its powerful 380X（or 240X）optical magnification. Undistorted, real time dynamic video streaming via Sony CCD imaging device onto the LCD monitor screen.
Simply insert the finger to the holder below the optical lens apparatus, fine-tune to fix the focal length and uncover the desired images within seconds.Blood capilliary microcirculation microscope is a non-invasive diagnostic tools, which is gaining large credit among physicians of different specialities in for study of skin blood capilliary.

Examination conditions for portable NailFold comparable provider

1) Check room temperature and humidity. Room temperature and humidity should be kept relatively constant. The room temperature should be maintained at 22-24 degrees and the relative humidity at about 70%
2) Patients should usually sit down and keep their hands at the same height as their heart
3) Prepare paraffin oil or cedar oil. Place 2 drops into the nail skin. (The goal is to demonstrate light transmission and reduce skin scattering)
4) Testing is usually done in the morning or afternoon and should be reviewed daily at the same time.
5) Patients should
One. Avoid strenuous exercise or physical activity for one hour before the test
b. Please take a break of approximately 15-30 minutes before testing.
C. No Drugs That Can Affect Cardiovascular Health Before Testing
d. Do not smoke, wash your hands or eat for one hour prior to the test
e. Note the effects of menstruation in women

What is microcirculation journal impact factor component of the color microcirculation detector?

MK880 host

1pc

LCD monitor

1pc

power adapter

1pc

cedar oil

1pc

cotton swab

1pc

chart

1pc

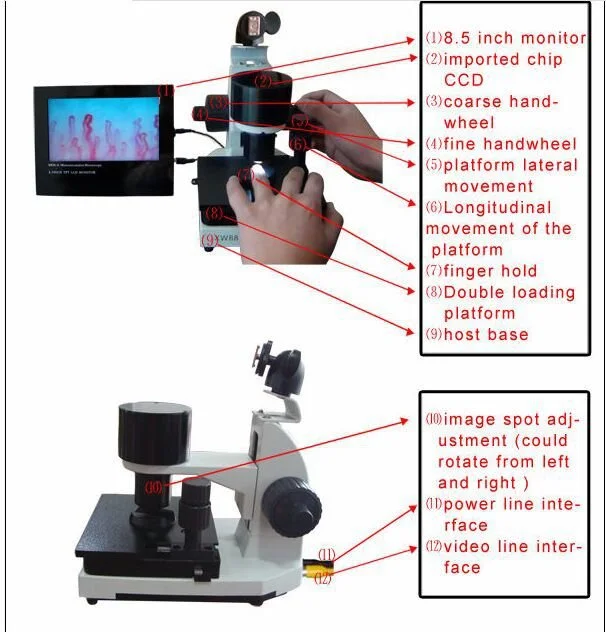

How to use

1) Fix the screen on the top of the mechanical equipment

2) Plug the power cord and video cable into the base connector.

3) Connect the plug, the plug shows green light. Press the “power” button on the screen, wait for 3 seconds, the screen will light up.

4) Put three drops of oil on the ring finger where the nail crosses the skin. Place the oiled finger in the finger holder. (If cedar oil is not available, use baby oil or olive oil instead)

5) Adjust the coarse handwheel so that when the screen displays an image, then adjust the fine handwheel and the image becomes clearer. The larger one is the coarse adjustment wheel and the smaller one is the fine adjustment handwheel. When the machine is about 2-3cm away from the finger, a clear transparent image will appear on the screen.

6) Then adjust the platform to move the handwheel laterally so that the first line of the blood vessel (capillary) is in the correct position, and then adjust the coarse and fine handwheels so that the blood vessel can be clearly seen. Your finger will move from left to right on the double loading platform. Therefore try to find the first blood vessel by rotating the platform laterally moving the handwheel to change the position of your finger. Finally rotate the fine handwheel (position shown in the structure) to see the vessel clearly.

7) If there are spots on the screen, rotate the camera left and right to remove them.

The Benefits of Nailfold comparable provider Using Ophthalmoscope

The Benefits of Nailfold comparable provider Using Ophthalmoscope

1. Early Diagnosis: Nailfold comparable provider using ophthalmoscope can detect early changes in the capillaries, which can indicate the onset of conditions such as Raynaud’s disease, Scleroderma, and other vascular conditions.

2. Precise Diagnosis: The technique allows for a precise diagnosis of a range of conditions.

3. Non-Invasive: The technique is non-invasive and does not require blood work or other invasive procedures.

4. Cost-Effective: Nailfold comparable provider using ophthalmoscope is cost-effective compared to other diagnostic methods.

5. Improves Patient Care: The technique helps healthcare providers to diagnose and treat patients more accurately, leading to improved patient care.

Who Needs Nailfold comparable provider Using Ophthalmoscope?

1. People with Raynaud’s disease or other vascular conditions.

2. People with autoimmune diseases such as systemic lupus erythematosus or scleroderma.

3. People with connective tissue disorders.

4. People with vascular disorders.

Who Needs Nailfold comparable provider Using Ophthalmoscope?

1. People with Raynaud’s disease or other vascular conditions.

2. People with autoimmune diseases such as systemic lupus erythematosus or scleroderma.

3. People with connective tissue disorders.

4. People with vascular disorders.

What application of Nailfold comparable provider?

1, Microcirculation observation at the distal nail wall

2, distal skin microcirculation observation

3, Tongue microcirculation observation.

4, distal auricular microcirculation observation.

5, lip microcirculation observation.

6, microcirculation was observed at other sites.

7, sweat glands were observed.

8, observed hair follicles.

9, Bamboo charcoal commodity microcirculation efficiency test

10, Far-infrared commodity microcirculation efficiency test

11, Titanium germanium microcirculation cargo performance testing

12, Ore commodity microcirculation efficiency testing

Pre-quotation checklist

• Confirm workflow and operation
• Confirm core components and system composition
• Confirm software, interface and data capabilities
• Confirm maintenance, consumables and after-sales support
• Confirm manuals, certificates and test documents

Compliance and quotation contact

**Article Disclaimer / Compliance Notice**

This content is provided for educational, informational, product introduction, and professional reference purposes only. MAIKONG nail fold comparable provider equipment, nailfold microscopes, videocapillaroscopy systems, comparable provider cameras, and related devices are intended for professional observation, imaging, documentation, training, research, and other uses consistent with their specified product purpose.

Our content does not provide medical advice and should not be interpreted as a diagnosis, treatment recommendation, cure, or substitute for examination by a qualified healthcare professional. Nailfold comparable provider images and observations should be interpreted by appropriately trained professionals within the scope of their education, professional responsibilities, and applicable regulations.

Product availability, intended use, labeling, registration, import requirements, and permitted claims may vary by country, state, institution, and application. Buyers, distributors, clinics, researchers, and other users are responsible for confirming applicable U.S. federal, state, institutional, and professional requirements before purchasing, distributing, promoting, or using the equipment.

MAIKONG does not claim that its comparable provider products can independently diagnose, prevent, treat, or cure any disease unless such a claim is specifically supported by the product’s applicable regulatory authorization and official labeling. Product specifications, accessories, software functions, and configurations may vary by model and should be confirmed before purchase.
