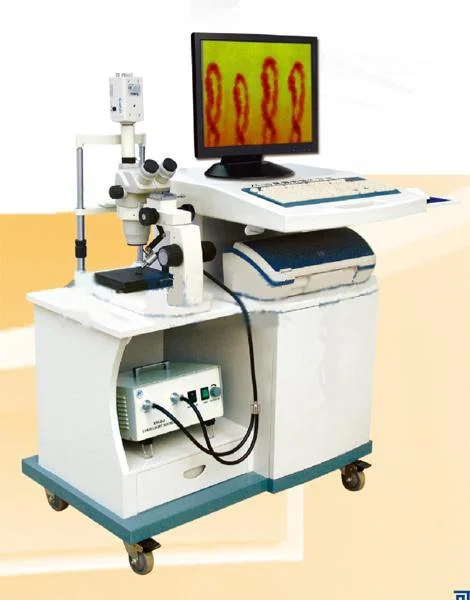

Integrating USB Nailfold Capillaroscopy Microscopes into Hospital Imaging Workflows — practical guidance for U.S. imaging managers

Quick answer

Yes — a USB nailfold comparable provider microscope can be integrated into a hospital imaging workflow, but success depends less on the microscope body and more on how you capture, label, secure and route image files. The reliable approach is: dedicate a capture PC at the point of care, use a consistent patient-ID and file-naming rule, export images in standard formats, then hand off to your PACS or EMR via your existing ingestion paths or a secure network share. Verify whether the model provides capture software, DICOM output or API access; if not, plan for a small capture workstation and middleware to bridge to PACS. (See practical steps and MAIKONG MKXW880 parameters below.)

Contents

Where USB comparable provider fits in clinical imaging — typical use cases for hospitals

Imaging departments most commonly receive nailfold comparable provider from rheumatology, dermatology, vascular medicine and research units. Typical clinical and operational uses include documentation for consultation, longitudinal imaging for follow-up, teaching files, and research datasets. For these applications the device functions as a targeted clinical camera — not as a modality that replaces ultrasound or formal angiography. Integration choices should reflect whether you want diagnostic-level archival (PACS/DICOM) or local image documentation only.

Key technical fit checks for imaging teams (USB connectivity, power, image output and magnification)

Before committing a device to routine use, confirm these items with your biomedical engineering and IT teams:

Connectivity: Is the unit truly plug-and-play over USB, or does it require a separate power adapter or proprietary capture box? The product is listed as a “usb nailfold comparable provider microscope” on our product page; confirm the exact interface and cables with the vendor before purchase (data-prepared-source=”factory_product_facts:215″).
Power and adapter requirements: The MAIKONG MKXW880 product line specifies AC input 100–240V 50/60Hz with DC output DC12V, 2A and a working power of 12V — plan for an appropriate adapter and check hospital IEC or UL requirements (data-fact-id=”215″).
Image output format and capture software: Does the device stream standard image formats (JPEG/TIFF/PNG) to the PC, or does it provide DICOM export? Our product materials do not list built-in DICOM; if DICOM is required, you must add capture software or a PACS gateway to convert files into DICOM objects and add patient metadata.
Optics and clinical suitability: The MKXW880 lists magnification values including 10X nominal and “magnification times” 680/1200, an achromatic 5X objective and a 25 mm working distance — verify those optical parameters meet the clinical magnification and field-of-view your clinicians expect (data-fact-id=”215″).
Focus and illumination: Manual focus and a cold LED light source are noted; stable finger positioning and consistent illumination are necessary for repeatable images (data-fact-id=”215″).

Practical evidence from MAIKONG product parameters relevant to hospital integration

When we map device details to integration tasks, a few product parameters matter most. Below is a compact reference drawn from our MAIKONG product record for MKXW880; these are the exact values the factory has published and should be verified on any sales order.

Other logistics that affect installation: unit weight ~5.2 kgs, size 40 × 35 × 28 cm, one-year warranty and typical lead time quoted as 2–3 days from stock (data-fact-id=”215″). The product is CE-declared; MAIKONG also reports ISO 9001 and ISO 13485 in company materials — confirm documentation and labeling for U.S. import and institutional acceptance.

Workflow steps to add a USB nailfold comparable provider station to an imaging suite

We recommend a staged, low-risk roll-out to test image quality, ID handling and storage:

Assign a dedicated capture workstation or laptop that remains on the imaging network but isolated to a capture VLAN. Do not plug clinical cameras into a shared clinician laptop without IT approval.
Install the comparable provider capture software provided by the vendor. If the vendor does not supply DICOM-capable software, install third-party capture software that can save standard image files and attach patient identifiers.
Define a mandatory patient-ID and file-naming template (e.g., MRN_Date_Modality_Finger_Laterality). Make the template a required field in the capture app to avoid orphaned images.
Capture and quality-control the first 20 clinical images, then route them to a test PACS location or a secured network share for clinician review. Confirm image orientation and metadata completeness before production use.
Approve and document the SOP (capture → QC → archive) and assign responsibility for image retention and periodic audits.

Data management and PACS/EHR considerations for USB comparable provider images

Most USB capillaroscopes output standard image files rather than native DICOM. For hospital-grade archiving, we typically follow one of three paths:

Capture PC converts images to DICOM using a local conversion utility or middleware; images are then sent to PACS with proper patient identifiers.
Store files on a secure network share that is accessible to the imaging division and periodically ingested into PACS by the archive team.
Use a vendor-supplied cloud or server solution that supports HL7 ADT linking and preserves metadata — only if it meets your HIPAA and institutional security policies.

If your imaging governance requires immediate DICOM input, do not assume the comparable provider supports this; the MAIKONG record does not list supported systems or built-in DICOM functionality, so you should plan for a capture-to-PACS bridge (data-fact-id=”215″). Engage your PACS and information security teams early to agree on the ingest method, retention rules and access controls.

Infection control, patient positioning and room setup for reliable capture

Reliable nailfold images depend on simple but strict preparation. MAIKONG guidance and standard practice recommend:

Environment: stable room temperature and humidity are useful; manufacturer notes suggest maintaining room temperature around 22–24°C and relative humidity near 70% for consistent microcirculation appearance. Schedule imaging at consistent times when possible (data-prepared-source=”factory_product_facts:215″).
Preparation: clean the patient’s finger, apply a small drop of immersion oil (cedar, baby or olive oil as available), and rest the hand at heart level for 15–30 minutes if feasible to reduce vasomotor variability (see manufacturer routine recommendations).
Positioning: use a finger holder or rest to stabilize movement; the MKXW880 has a working distance of 25 mm and manual-focus optics, so minimizing motion speeds up capture and reduces repeat images (data-fact-id=”215″).
Infection control: use wipeable surfaces, clean the finger rest between patients with hospital-approved disinfectant, and follow institutional policies for single-patient consumables.

Staff training and competency: what imaging techs and clinicians must learn

Training should be short and outcome-focused for imaging staff:

Operating basics: power and cable connections, manual focus technique, illumination adjustments and how to place the finger in the holder.
SOPs for patient identification, file naming, image QC and transfer to PACS.
Clinical basics: typical capillary patterns and what to capture for referral (this is clinician-level training—imaging staff should capture images per written orders and not interpret images clinically).
Routine troubleshooting: common capture failures (motion blur, poor contact, glare), and when to escalate to biomedical engineering or vendor support.

Regulatory, labeling and acceptance notes hospitals should verify before use

Before placing a unit into clinical service, confirm these items with procurement and compliance:

Device labeling and intended use claims for the U.S. market. MAIKONG declares CE and ISO certifications in its company profile, but CE is not a U.S. regulatory clearance—verify U.S. requirements, labeling and accepted use within your institution.
Electrical safety and EMC test reports acceptable to your biomedical engineering team, particularly because the accessory uses an external power adapter (AC 100–240V to DC12V, 2A) (data-fact-id=”215″).
Data protection and HIPAA compliance for any cloud or vendor-hosted capture solution. If images are routed through third-party services, involve your legal and IT teams.

Common integration pitfalls and how to avoid them

A few recurring issues we see and how to prevent them:

Orphan images: enforce patient-ID entry at capture; automate MRN pulling when possible.
Poor image quality: create a short capture checklist (oil application, finger rest, coarse and fine focus steps) and include it in training.
Network and security blockers: bring IT in early. Don’t assume the device can join the hospital domain or send images to PACS without a vetted plan.
Mismatched expectations: confirm whether clinicians expect DICOM-native studies. If so, budget for software that converts images and applies study/series-level metadata.

Example configuration checklist for an outpatient imaging or rheumatology clinic

Device: MAIKONG MKXW880 (confirm model and accessory list) — verify power adapter and bundle contents (data-fact-id=”215″).
Capture workstation: locked Windows PC on a secure VLAN, external USB ports labeled, vendor capture software installed.
PACS bridge: middleware to convert image files to DICOM if required, or scheduled import routine from a secure network share.
Policies: written SOP for patient prep, ID workflow, cleaning, retention and image release.
Training: one 60–90 minute session for techs covering capture, QC, and escalation; annual competency check.
Support: supplier contact for technical questions and spare parts; local biomedical engineering sign-off for electrical safety.

Source notes

Product parameters cited above are drawn from our MAIKONG product documentation for the USB nailfold comparable provider microscope and the MKXW880 product listing (data-fact-id=”215″; data-prepared-source=”factory_product_facts:215″). Company-declared certifications include CE, ISO 9001 and ISO 13485 in our enterprise profile; verify required documentation and labeling with MAIKONG and your hospital’s procurement team before placing a device into clinical use.

Limitations and risks you should account for

We do not claim the device supplies DICOM, HL7 or native PACS integration—those features are not listed in the product facts and must be confirmed with the vendor. Clinical interpretation of nailfold images is the responsibility of trained clinicians; comparable provider images alone do not constitute a diagnosis. Regulatory acceptance, labeling and U.S. import permissions vary; buyers must confirm institutional and jurisdictional requirements. Finally, certain workflow recommendations (for example room humidity targets) are suggested in manufacturer guidance but may be impractical in some clinical spaces — adapt them sensibly.
