Nail Videocapillaroscopy: How Video-Based Nailfold Microvascular Observation Works

Nail videocapillaroscopy is a non-invasive optical technique designed for direct, real-time visualization of nutritional capillary loops within the periungual skin border. The instrumentation pairs high-magnification optical lenses with dedicated digital video sensors to project live microvascular dynamics onto high-resolution displays. Healthcare professionals and scientific researchers utilize this method to evaluate capillary architecture, morphological integrity, and microvascular flow dynamics in living tissue.

Selecting appropriate equipment depends on required optical resolution, stage stability, illumination type, and whether data must be archived for longitudinal evaluation. Institutional workflows benefit when hardware balances precise optical focus with dependable mechanical controls to minimize motion artifacts during observation.

Microvascular Features Observable at the Nailfold

The nailfold presents a unique anatomical orientation where nutritional capillaries run parallel to the epidermal surface rather than perpendicular to it. This horizontal arrangement allows unobstructed visualization of the complete microvascular loop, including the afferent arteriolar limb, the apical loop, and the efferent venular limb.

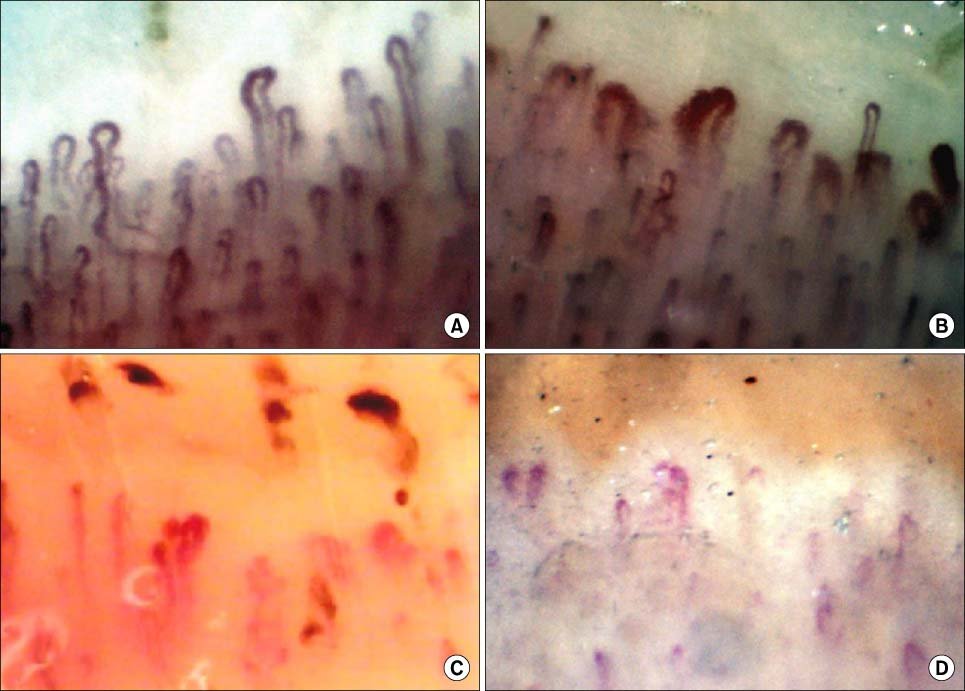

Under stable magnification, trained observers track distinct microvascular characteristics that reflect the functional state of the peripheral circulation:

• Capillary density and loop distribution across the distal row of the nailbed.
• Loop dimensions, including apical diameter and limb width.
• Morphological variations, such as tortuosity, ramified formations, or prominent hairpin configurations.
• Presence of enlarged loops, including the appearance of giant capillaries.
• Extravasation of red blood cells, observed as distinct microhemorrhages in the pericapillary area.
• Subpapillary venular plexus visibility and capillary blood flow velocity.

In specialized investigations involving connective tissue disease, tracking microvascular damage helps researchers document structural changes over time. When investigating conditions such as the scleroderma pattern or assessing systemic sclerosis patients, documenting capillary loss or structural disruption provides standardized visual metrics alongside other clinical criteria, such as those evaluated in nailfold capillaroscopy scleroderma research protocols.

Core Engineering of a Videocapillaroscope

A functional nailfold videocapillaroscope integrates specialized optoelectronic subsystems to deliver distortion-free dynamic streaming directly from the dermal papillae to an attached monitor. Every hardware element contributes to resolving microscopic vascular structures without introducing thermal disruption or optical distortion.

Optical Magnification Assembly

Achromatic lens systems offer true optical magnification, typically configured at 240X or 380X, with extended options reaching 500X or 600X. These optics correct for chromatic aberration, delivering flat-field clarity across the entire field of view.

Digital Sensor Architecture

Dedicated CCD sensors convert captured photons into steady dynamic video signals. Stable frame rates prevent motion blur during continuous real-time capillary blood flow monitoring.

Integrated Cold Illumination

Built-in LED cold-light sources direct concentrated illumination onto the nailfold without transferring heat to the skin. Avoiding localized temperature elevation prevents reactive vasodilation or artifactual flow alterations.

The system connects directly to dedicated color LCD monitors, commonly sized from 8 inches to 12 inches, allowing immediate multi-person review without requiring real-time ocular eyepiece alignment. Live digital output supports systematic documentation and longitudinal comparative studies across patient visits.

Optical Alignment and Mechanical Movement

Stabilizing the subject digit and maintaining focal precision are essential for high-magnification microvascular observation. Minor involuntary finger twitches or tremor can displace microscopic capillary loops entirely out of frame.

Focusing utilizes a coaxial coarse and fine adjustment mechanism. Operators engage the coarse adjustment handwheel to locate the initial tissue boundary before rotating the fine focus handwheel to resolve erythrocyte columns inside delicate loop walls.

An adjustable finger press holds the examined digit steadily in place against an ergonomic contoured seat. Operators can also employ image point rotation handwheels to eliminate minor optical reflections and align the horizon of the nailbed before image recording.

Step-by-Step Observation Protocol

Standardizing examination steps helps clinicians and laboratory investigators capture reproducible imaging across serial sessions. A methodical routine ensures optimal tissue illumination, stable focus, and minimal subject discomfort during a nailfold capillary test.

1. Connect the display and optoelectronic base unit to the DC power source, powering on the monitor and setting initial contrast and brightness controls.
2. Place two to three drops of immersion oil—such as cedar oil or pharmaceutical-grade paraffin—onto the periungual cuticular junction of the selected finger to improve epidermal translucency and reduce surface reflection.
3. Insert the subject finger into the dedicated finger holder located beneath the objective lens assembly, securing the digit gently with the stabilizing finger press.
4. Rotate the coarse focusing handwheel until the epidermal margin and tissue reflections appear on the LCD monitor.
5. Engage the fine adjustment handwheel to bring individual capillary loops and moving red blood cell aggregates into crisp focus.
6. Translate the mechanical stage laterally across the X-axis to systematically survey the distal row from lateral fold to lateral fold, recording structural anomalies or areas of capillary loss.

Following this structured protocol allows the operator to locate and record target capillary fields quickly, reducing examination duration while maintaining clear image definition.

Environmental Factors and Subject Preparation

Cutaneous microcirculation reacts dynamically to external temperature, physical activity, and emotional stress. Uncontrolled testing conditions can trigger peripheral vasoconstriction, making normal capillaries difficult to visualize or misinterpreting spastic flow as microvascular disease.

Subjects should rest comfortably in a seated position for 15 to 30 minutes before observation begins, keeping their hands elevated near heart level. This acclimatization period stabilizes baseline dermal blood flow throughout the examination.

Supervising protocols generally instruct subjects to avoid strenuous physical exertion, smoking, caffeine intake, and localized hand washing with cold water for one hour prior to imaging. Any ongoing prescription drug regimens should be recorded according to institutional research guidelines without altering clinician-directed treatments.

Investigation Contexts in Microcirculation Research

Because peripheral capillaries provide a direct view of microvascular morphology, nail fold capillaroscopy has become an established investigative tool in medical institutions, academic centers, and research laboratories.

• Rheumatology research, supporting observation of microvascular patterns associated with Raynaud phenomenon, systemic sclerosis, and related systemic autoimmune conditions.
• Angiology and vascular medicine, assessing microcirculatory responses in peripheral occlusive diseases, chronic venous insufficiency, and acrocyanosis.
• Dermatology, evaluating superficial microvascular changes in psoriasis, dermatitis, localized scleroderma, and chronic wound margins.
• Endocrine and metabolic studies, investigating functional capillary alterations and baseline flow characteristics.
• Academic anatomy and biomedical engineering instruction, demonstrating live human hemodynamics and microcirculatory physiological principles.
• Physiological evaluations, testing dermal responses to specialized therapeutic interventions or topical agents.

While the hardware produces high-fidelity visual documentation, it does not formulate diagnoses independently. All captured video streams and still frames require qualified interpretation by licensed medical professionals or trained investigators in accordance with recognized classification criteria.
